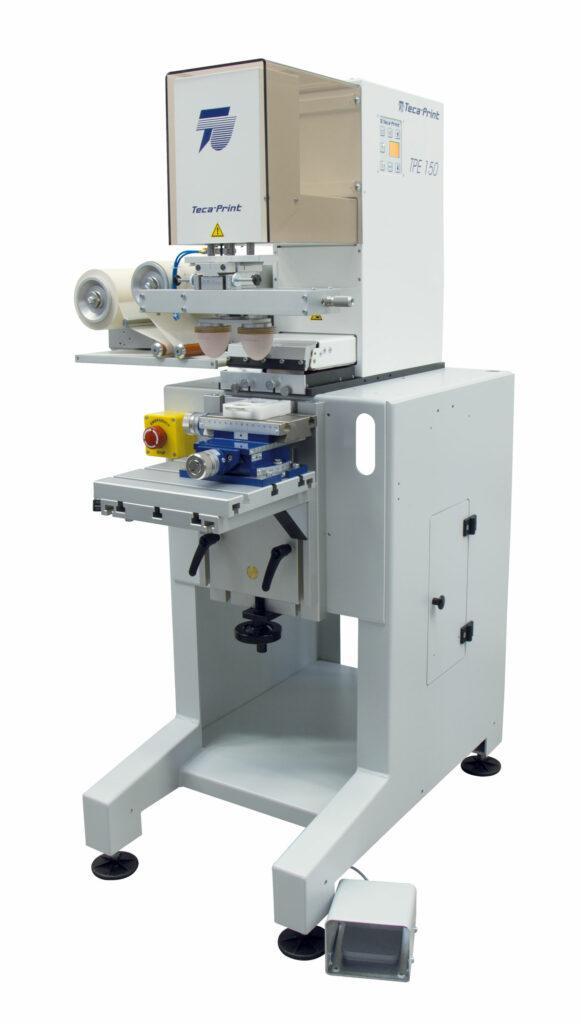

TPE 150

Pad printing machine for single colour prints

Your advantage:
- clearly and easily understandable functions
- highly productive possibilities
- electropneumatical
- compact design
- open inking system
- suitable also for “beginners”

The pad printing machine TPE 100 is a classic allrounder for smaller, single colour print images. The clear and easily understandable, but yet highly productive functions and possibilites are also appreciated by beginners. Equipped with an open inking system, the pad printing machine TPE 100 offers an efficient workflow thanks to the quickly exchangable cliché and the low cost of clichés. For even more flexibility a magnetic plate with exchangeable ink container is available as an option.
The TPE 100 is commonly used as a single workstation. A variety of accessories is available for this series and it can be supplied as a table model or complete with a base.

Technical data TPE 100

Number of colours:
1 colour

Plate sizes:
100 x 100 mm / 150 x 100 mm

Output:
up to 1’800 cycles per hour

Drive system:
electropneumatical

Printing force:
250 N (printing force must be belanced)

Mains connection:
230 V / 50 Hz, 5 – 6 bar air pressure

Air consumption:
0.25 litres / cycles at 6 bar

Control:
PLC

Weight:
approx. 25 kg without machine base
approx. 90 kg with MS 250 machine base

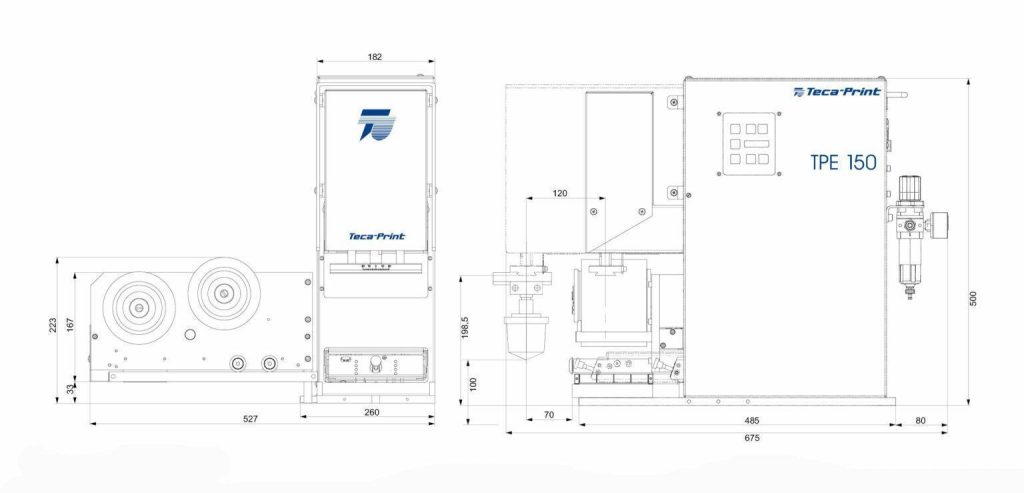

Dimensions (WxHxD):
150 x 481 x 670 mm
