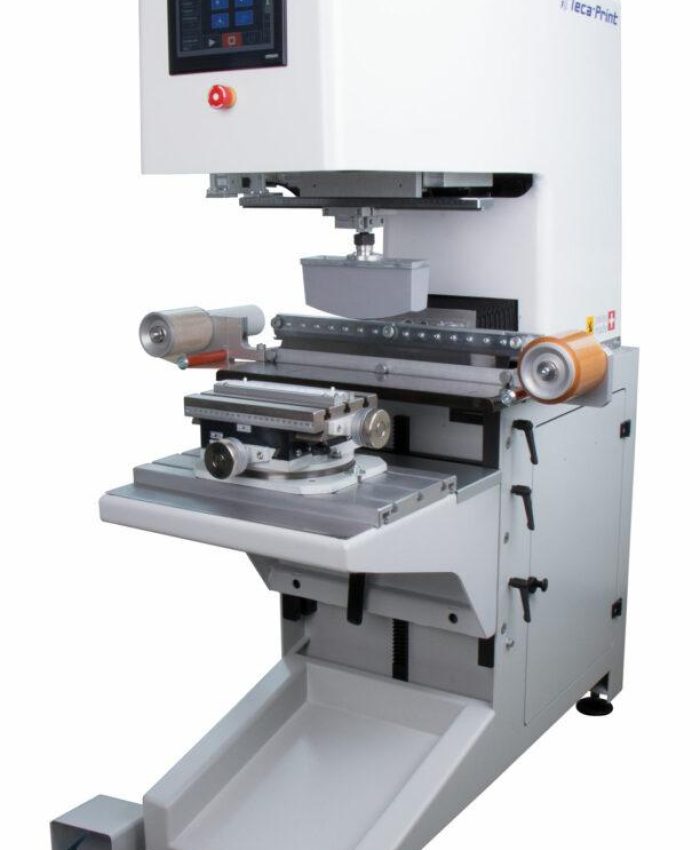

Delta III TPF 450

Electromechanical pad printing machine with innovative technology

Your advantage:

  • up to 5 colours
  • high printing force
  • servo drive control
  • sustainable production
  • open inkwell system
  • matching peripherals available

The pad printing machines of the delta series offer high performance for surprising little money. The electromechanical machines are modern monocoque constructions and are suitable for prints with up to 5 colours. With an open inking system the plate depth is 120 or 150 mm and the variable plate width maximal 450 mm. A special highlight is the control unit of the machine: The display has self-explanatory symbols and the use of colour ensures a high level of user-friendliness. The range of options is transparent and was professionally selected with a focus on the essentials. It includes e.g. the automatic pad cleaning device, different machine bases and profile frames as well as peripherals that are optimally adapted to the machine.

Technical data delta III TPF 450

Number of colours:
1 to 5 colours

Plate sizes:
standard plate widths: 150 / 250 / 350 / 450 mm
standard plate depths: 120 / 150 mm

Output:
up to 1’850 cycles per hour (pad stroke 20 mm)

Drive system:
electromechanical

Printing force:
3’000 N (printing force must be balanced)

Mains connection:
230 V / 50 Hz, 5 – 6 bar air pressure

Air consumption:
0.04 litres / cycle (6 bar)

Control:
PLC – HMI touchscreen

Vertical pad stroke:
electromechanical, 150 mm, infinitely adjustable

Outreach pad carriage:
215 mm

Weight:
approx. 131 kg without base, approx. 300 kg with MS 352 machine base

Dimensions (WxHxD):
530 x 710 x 1073 mm

Folheto Delta III TPF 450

Consulta a ficha técnica em PDF para conheceres todas as características e especificações desta máquina.

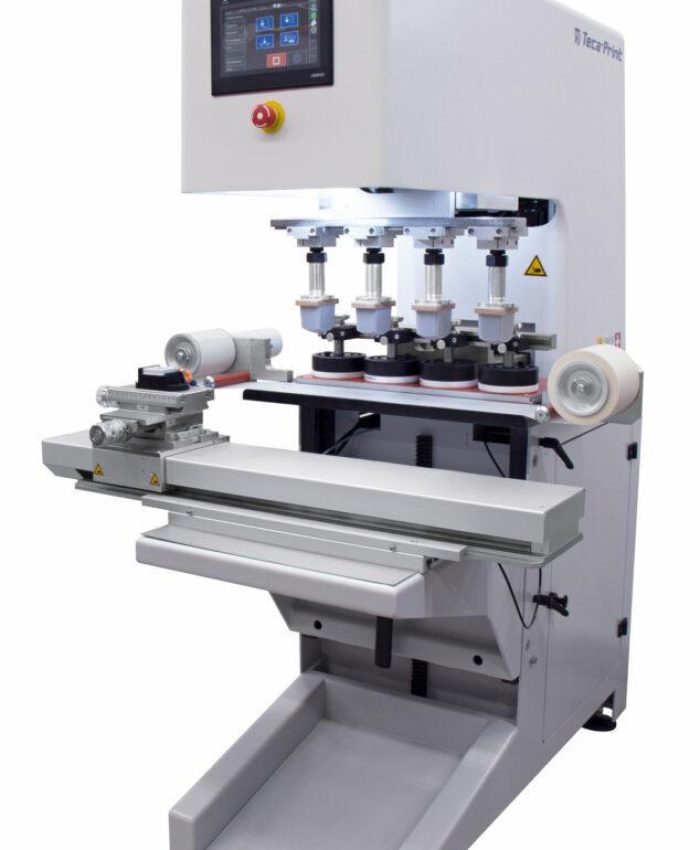

Delta III TPF 451

A modern pad printing machine for many applications

Your advantage:

  • 1 to 6 colours
  • high printing force
  • servo drive control
  • sustainable production
  • sealed inking system
  • a wide range of peripheral devices available

Modern, with a focus on the essential: The electromechanical machines of the line delta are suitable for a wide range of applications at an excellent price/performance ratio and with a clear range of options.

With a plate width of up to 450 mm and a plate depth of 220 or 270 mm, high quality prints in up to five colours can be produced with the sealed inking system. All settings can be entered easily using the touch screen. Self-explanatory symbols and the use of colour ensure a high level of user-friendliness. Next to the automatic pad cleaning device, different machine bases and profile frames as well as peripherals are available as options.

Technical data delta III TPF 451

Number of colours:
1 to 6 colours

Ink cup sizes:
Ø 56 mm, Ø 65 mm, Ø 72 mm, Ø 86 mm, Ø 96 mm, Ø 105 mm, Ø 115 mm, Ø 130 mm

Plate sizes:
standard plate widths: 100 / 150 / 250 / 320 / 350 / 450 mm
standard plate depths: 220 / 270 mm

Output:
up to 1’850 cycles per hour (pad stroke 20 mm)

Drive system:
electromechanical (3 axis control with 3 servo motors), infinitely adjustable parameters

Printing force:
3’000 N (printing force must be balanced)

Mains connection:
230 V / 50 Hz (5 – 6 bar air pressure)

Control:
PLC – HMI touchscreen

Vertical pad stroke:
electromechanical, 150 mm infinitely adjustable

Outreach pad carriage:
215 mm

Weight:
approx. 131 kg without base, approx. 300 kg with MS 352 machine base

Dimensions (WxHxD):
530 x 710 x 1073 mm

Folheto Delta III TPF 451

Consulta a ficha técnica em PDF para conheceres todas as características e especificações desta máquina.
