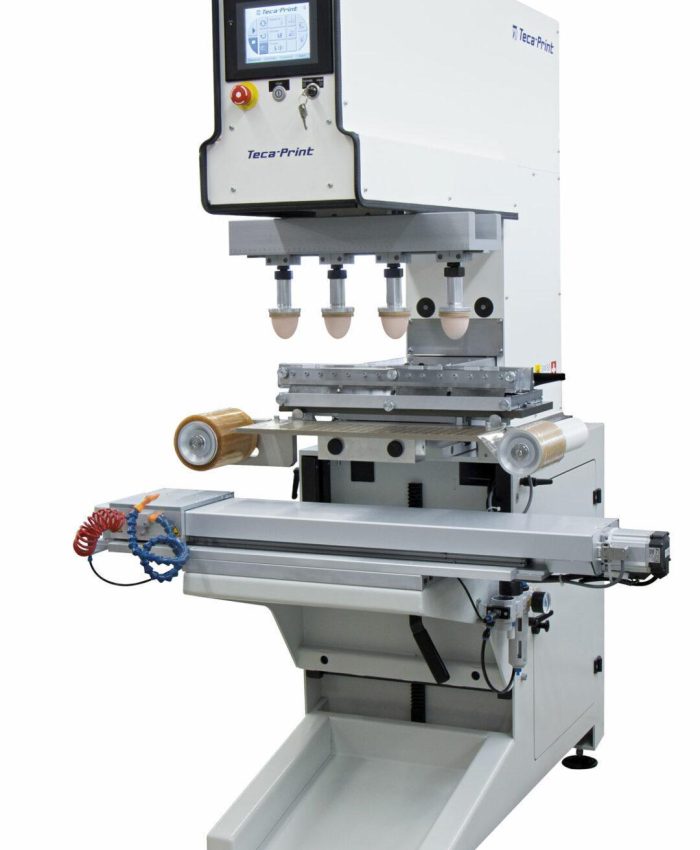

TPX 300
Electromechanical pad printing machine for many applications
Your advantage:
- 1 to 5 colours
- highest flexibility for your printing process
- servo drive control
- suitable for many applications
- open inkwell system
- a wide range of peripheral devices, accessories and software options available
The pad printing machine TPX 300 with an open inking system is driven by three servo motors. This offers a highly flexible printing process. The operation can be controlled via the user-friendly colour touch-screen.
Between the plate holder, adjustable in x- and w-axes and the pad stroke, which is infinitely variable horizontally and vertically, the TPX 300 is fully adjustable in all directions without the need of additional adjustment devices.
Additional characteristics of the TPX 300 are a spacious, flexible working area, an increased printing force and a very high print accuracy. An integrated pad cleaning device is available, that offers a maximum use of the cleaning tape thanks to the cleaning offset function.
Technical data TPX 300
Number of colours:
1 to 5 colours
Plate sizes:
standard plate widths: 250 / 350 / 450 mm
standard plate depths: 100 / 120 mm
Output:
up to 1’600 cycles per hour
Drive system:
electromechanical (3 axis control with 3 servo-motors), infinitely adjustable parameters
Printing force:
4000 N (printing force must be balanced)
Mains connection:
230 V / 50 Hz, 5 – 6 bar air pressure
Air consumption:
0.04 litres / cycles at 6 bar
Control:
PLC – HMI touchscreen
Vertical pad stroke:
electromechanical, 160 mm infinitely ajustable
Cliché plate adjustment:
± 5 mm (x-axis), ± 2° (rotation)
Weight:
approx. 245 kg without base, approx. 410 kg with MS 352 machine base
Dimensions (WxHxD):
740 x 955 x 1’244 mm (dimensions without base)
Folheto TPX 300
Consulta a ficha técnica em PDF para conheceres todas as características e especificações desta máquina.

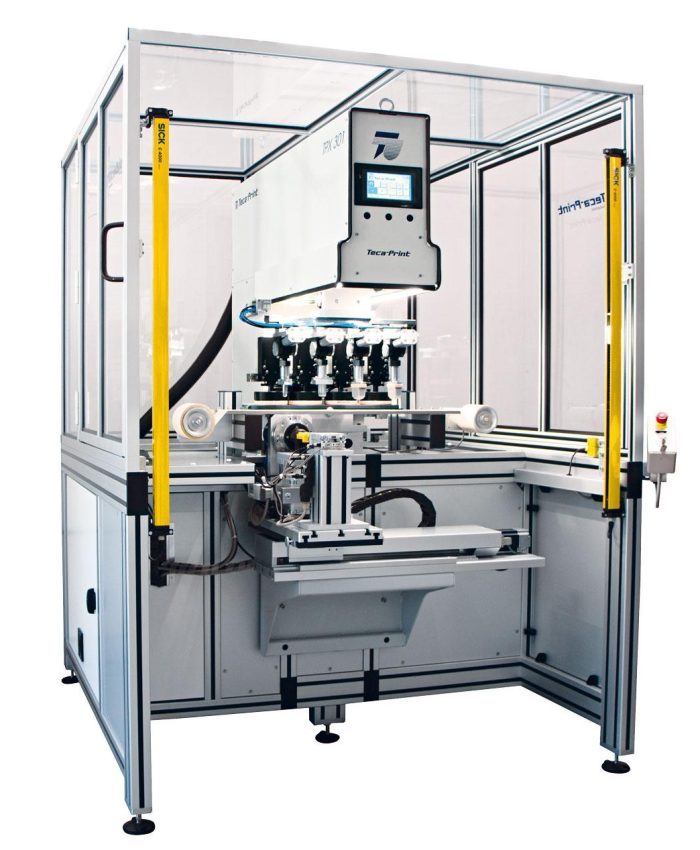

TPX 301
Our best selling machine: full servo drive control – flexible programming
Your advantage:
- up to 7 colours
- flexible configuration
- servo drive control
- suitable for many applications
- sealed inking system
- a wide range of peripheral devices available
The pad printing machine TPX 301 with a sealed inking system is driven by three servo motors. This offers a highly flexible printing process. The operation can be controlled via the user-friendly colour touch-screen.
Between the plate holder, adjustable in x- and w-axes and the pad stroke, which is infinitely variable horizontally and vertically, the TPX 301 is fully adjustable in all directions without the need of additional adjustment devices.
Additional characteristics of the TPX 301 are a spacious, flexible working area, an increased printing force and a very high print accuracy.
An integrated pad cleaning device is available, that offers a maximum use of the cleaning tape thanks to the cleaning offset function.
Technical data TPX 301
Number of colours:
1 – 7 colours
Ink cup sizes:
round (Ø mm): 56 / 65 / 72 / 86 / 96 / 105 / 115 / 130 / (160)
oval (W x L mm): 96 x 120 / 70 x 140 / 116 x 226 / 115 x 320
Plate sizes:
Standard plate widths: 80 / 100 / 125 / 150 / 250 / 320 / 350 / 450 mm
Standard plate depths: 220 / 260 / 300 mm
Output:
up to 1’600 cycles per hour
Drive system:
electromechanical – 3 axis control with 3 servo motors, infinitely adjustable parameters
Printing force:
4000 N (printing force must be balanced)
Mains connection:
230 V / 50 Hz, (5 – 6 bar air pressure required for some pneumatic accessories)
Control:
PLC – HMI touchscreen
Vertical pad stroke:
electromechanical, 160 mm infinitely adjustable
Cliché plate adjustment:
± 5 mm (x-axis), ± 2° (rotation)
Weight:
approx. 245 kg without base, approx 410 kg with MS 352 machine base
Dimensions (WxHxD):
740 x 955 x 1’244 mm (dimensions without base)
Folheto TPX 301
Consulta a ficha técnica em PDF para conheceres todas as características e especificações desta máquina.

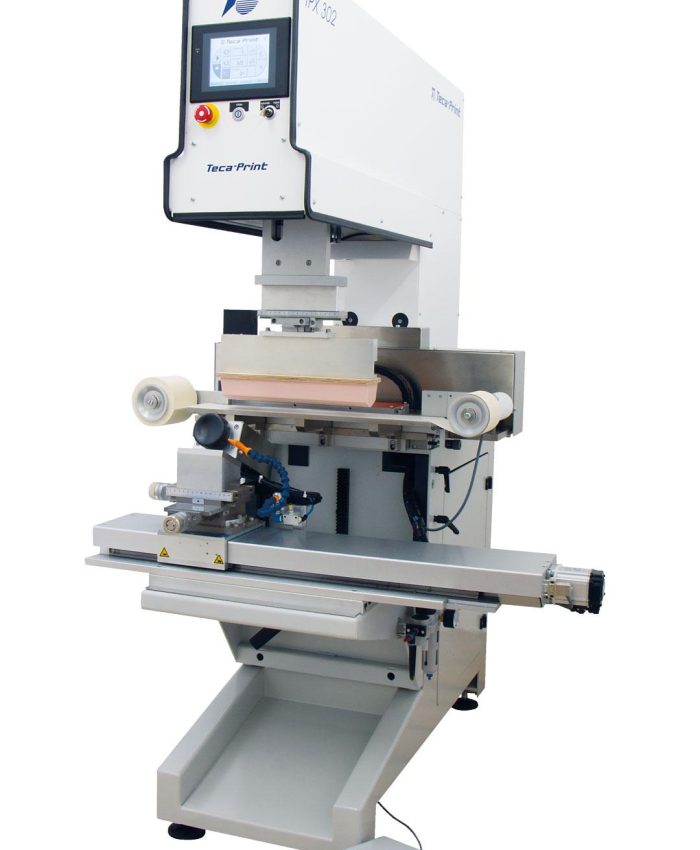

TPX 302
With lateral cup movement – ideal for elongated print images
Your advantage:
- 1 or 2 colours possible
- particularly suitable for elongated print images
- highest flexibility
- servo drive control
- sealed inking system with lateral ink cup sliding
- a wide range of peripheral devices, accessories and software options available
The pad printing machine TPX 302 with a sealed inking system and lateral sliding ink cup is driven by three servo motors. This offers a highly flexible printing process.
The operation can be controlled via the user-friendly colour touch-screen. Between the plate holder, adjustable in x- and w-axes and the pad stroke, which is infinitely variable horizontally and vertically, the TPX 302 is fully adjustable in all directions without the need of additional adjustment devices.
Additional characteristics of the TPX 302 are a spacious, flexible working area, an increased printing force and a very high print accuracy. An integrated pad cleaning device is available, that offers a maximum use of the cleaning tape thanks to the cleaning offset function.
Technical data TPX 302
Number of colours:
1 or 2 colours
Ink cup sizes:
Ø in mm: 56 / 65 / 72 / 86 / 96 / 105 / 115 / 130
Plate sizes:
standard plate widths: 450 / 600 mm
standard plate depths: 100 / 150 mm
Output:
up to 1’400 cycles per hour
Drive system:
electromechanical (3 axis control with 3 servo motors), infinitely adjustable parameters
Printing force:
4000 N (printing force must be balanced)
Mains connection:
230 V / 50 Hz, 5 – 6 bar air pressure required for some pneumatic accessories
Control:
PLC – HMI touchscreen
Vertical pad stroke:
electromechanical, 160 mm infinitely adjustable
Cliché plate adjustment:
± 4 mm (x-axis), ± 2° (rotation)
Weight:
approx. 220 kg without base, approx. 400 kg with MS 352 machine base
Dimensions (WxHxD):
1’112 x 912 x 1’244 mm (dimensions without base)
Folheto TPX 302
Consulta a ficha técnica em PDF para conheceres todas as características e especificações desta máquina.
